4 Watt Modular LED

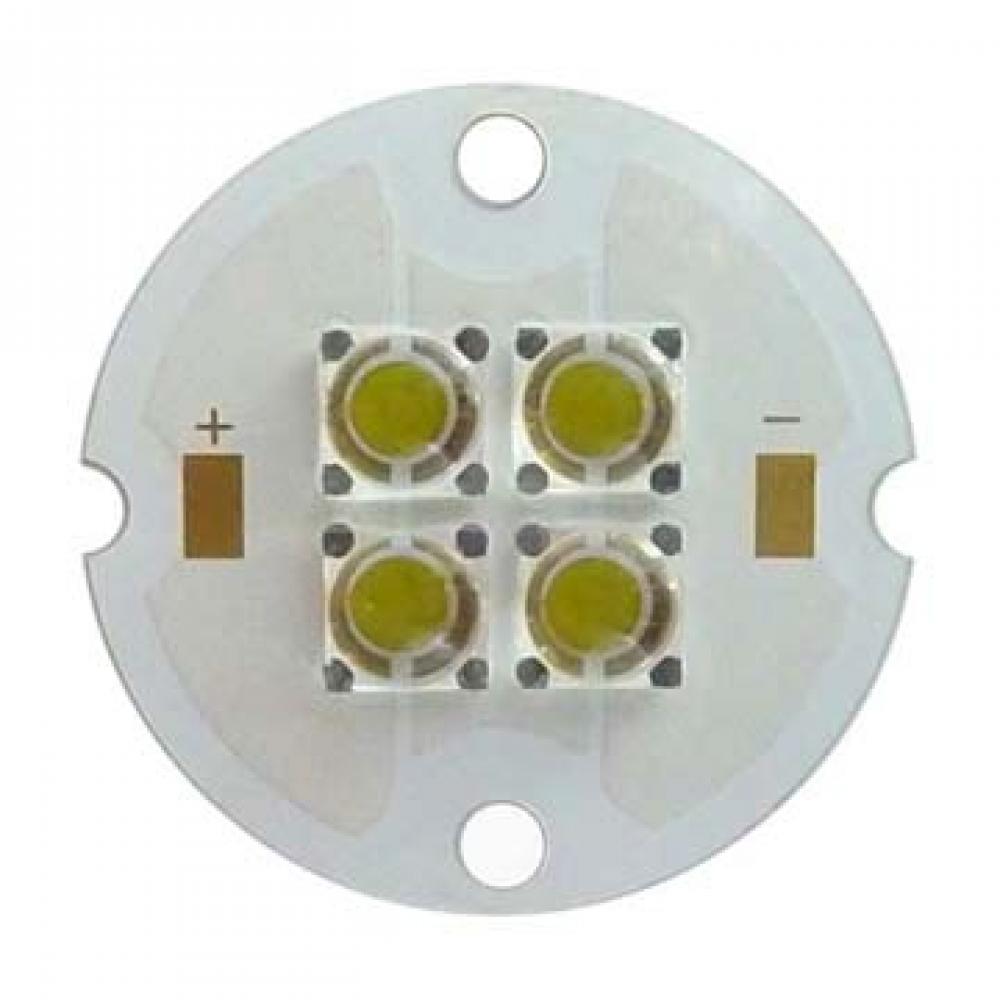

MPCB High Power 4 X 1 Watt Modular LED

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 1 watt high power LED
LED Amount: 4pcs LEDs
Constant Current: 600mA
Forward voltage: 4-8 VDC
Power Consumption: 4.5W
Beam angle: 120
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 140 lm
Green 200 lm
Blue 60 lm
Pure White 300 lm
Natural White 280 lm
Warm White 250lm
Electrical/Optical Characteristics at Ta=25℃
Height: 2.62mm
Diameter: 28mm
Operating temperature range: -10C till 45C
