12 Watt Modular LED

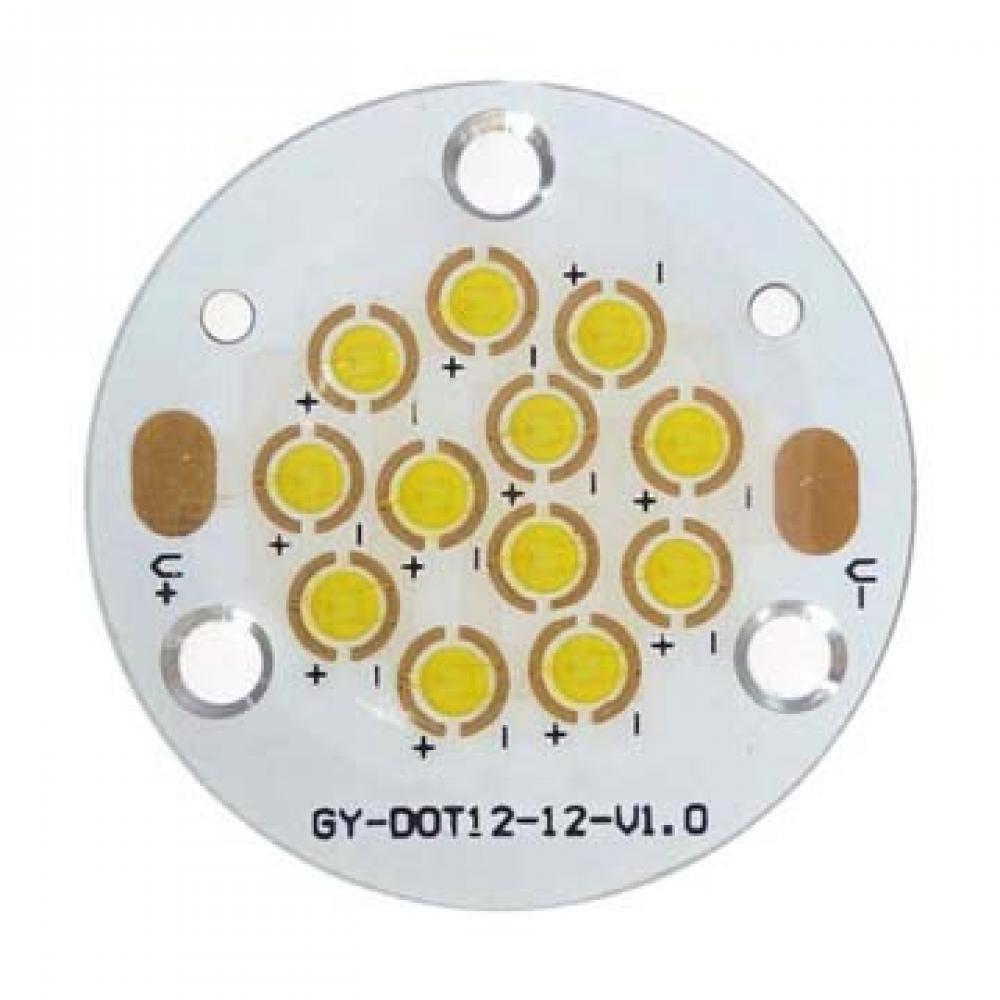

MPCB High Power 12 X 1 Watt Modular LED

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 1 watt high power LED
LED Amount: 12pcs LEDs
Constant Current: 1200mA
Forward voltage: 6-12 VDC
Power Consumption: 13W
Beam angle: 120
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 400 lm
Green 600 lm
Blue 160 lm
Pure White 960 lm
Natural White 900 lm
Warm White 860lm
Electrical/Optical Characteristics at Ta=25℃
Height: 1.5mm
Diameter: 35mm
Operating temperature range: -10C till 45C
