45 Watt Modular LED

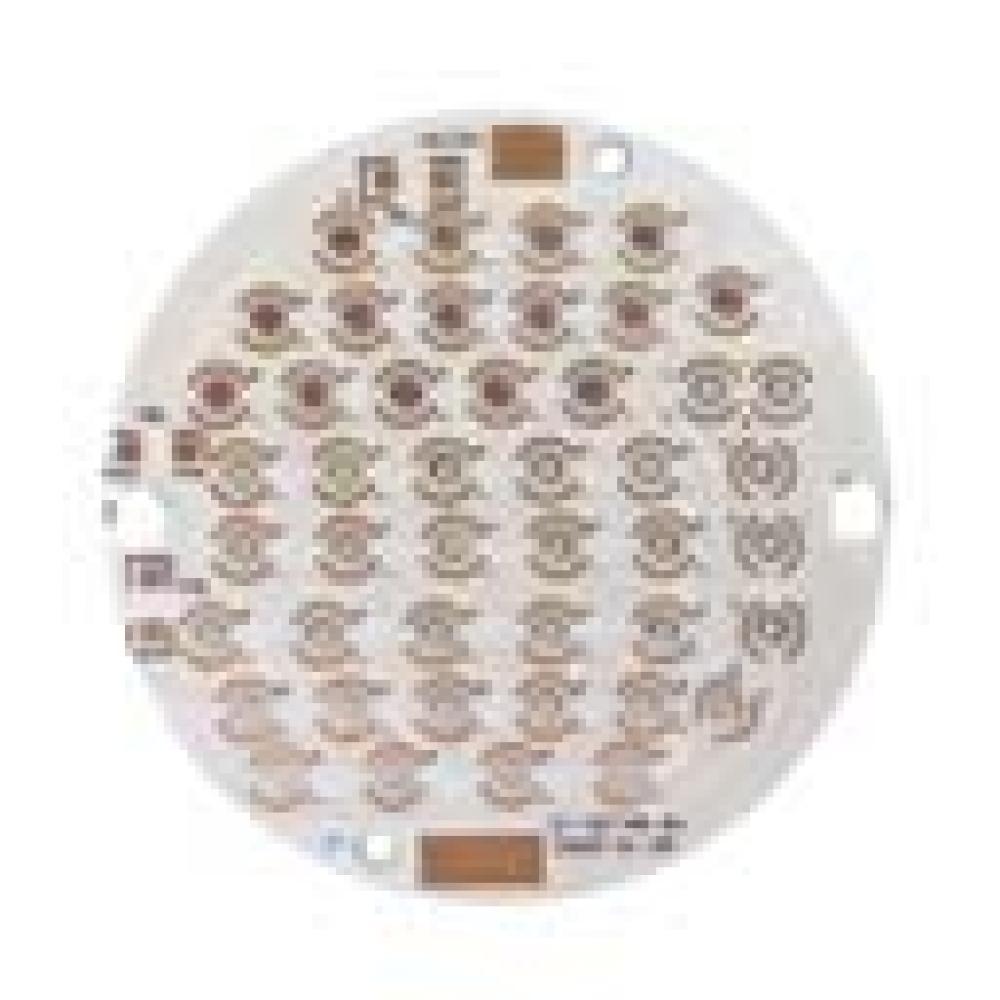

MPCB High Power 45 X 1 Watt Modular RGB LED

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 1 watt high power LED
LED Amount: 45pcs LEDs
Constant Current: 1500mA
Forward voltage: 6-14 VDC
Power Consumption: 48W
Beam angle: 120
Color: Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 450 lm
Green 750 lm
Blue 225 lm
Electrical/Optical Characteristics at Ta=25℃
Height: 1.5mm
Diameter: 48mm
Operating temperature range: -10C till 45C
