1 Watt Modular LED

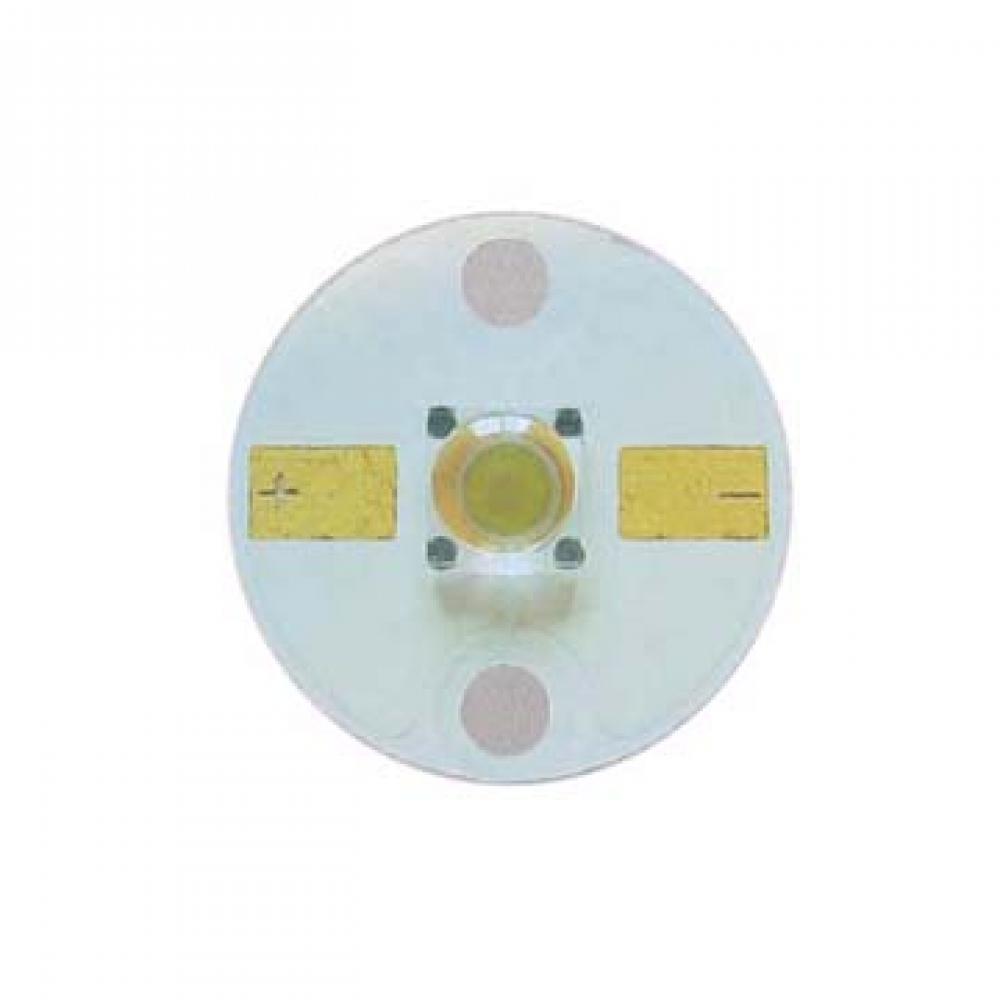

Round MPCB High Power 1 Watt Modular LED

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 1 watt high power LED
Constant Current: 150mA
Forward voltage: 3-4 VDC
Power Consumption: 1.2W
Beam angle: 120
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Red (620nm) / Green (520nm) / Blue (460nm)
Luminous flux: Red 30 lm
Green 60 lm
Blue 15 lm
Pure White 60 lm
Natural White 55 lm
Warm White 50lm
Electrical/Optical Characteristics at Ta=25℃
Height: 1.5mm
Operating temperature range: -10C till 45C
