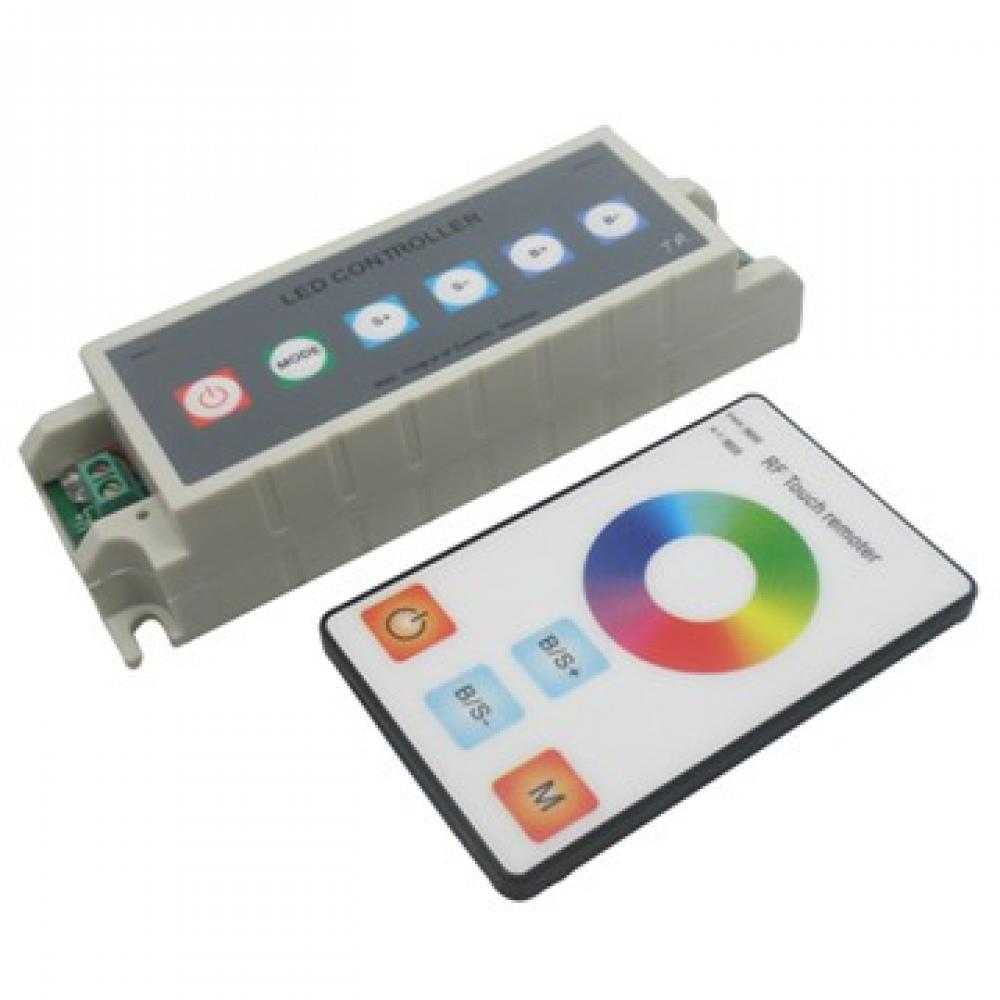

Touch Remote LED Controller TR1

12V Color Ring Touch Remote LED Controller TRF6S

Feature
- Touch-button, ultrathin, light quality, protable.
- Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.
- Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
- Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.

Specification

- Input Voltage: DC 12V
- Output: 3 channels
- Output current: <3A( each channel )
- Output power: <108W
- Connection mode: common anode
- Static power consumption: <1W
- Working Temperature: -20-60℃
- Controller dimension: (L)130mm x (W)40mm x (H)31mm
- Packing size: (L)140mm x (W)50mm x (H)60mm
- Net weight: 125g
- Gross weight: 150g


Touch Remote
- Working Temperature: -20-60℃
- Power Supply mode: 28*8mm battery
- Supply voltage: 12V
- Satic power consumption: 0.036mW
- Standby current: 3uA
- Work current: 300uA
- Emission current: 12mA
- Remote distance: 30m
- Standby time: 6 months

Remarks:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2. Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
3. Touch remote when not use for a long time, suggest to take down the battery.
