DMX Controller

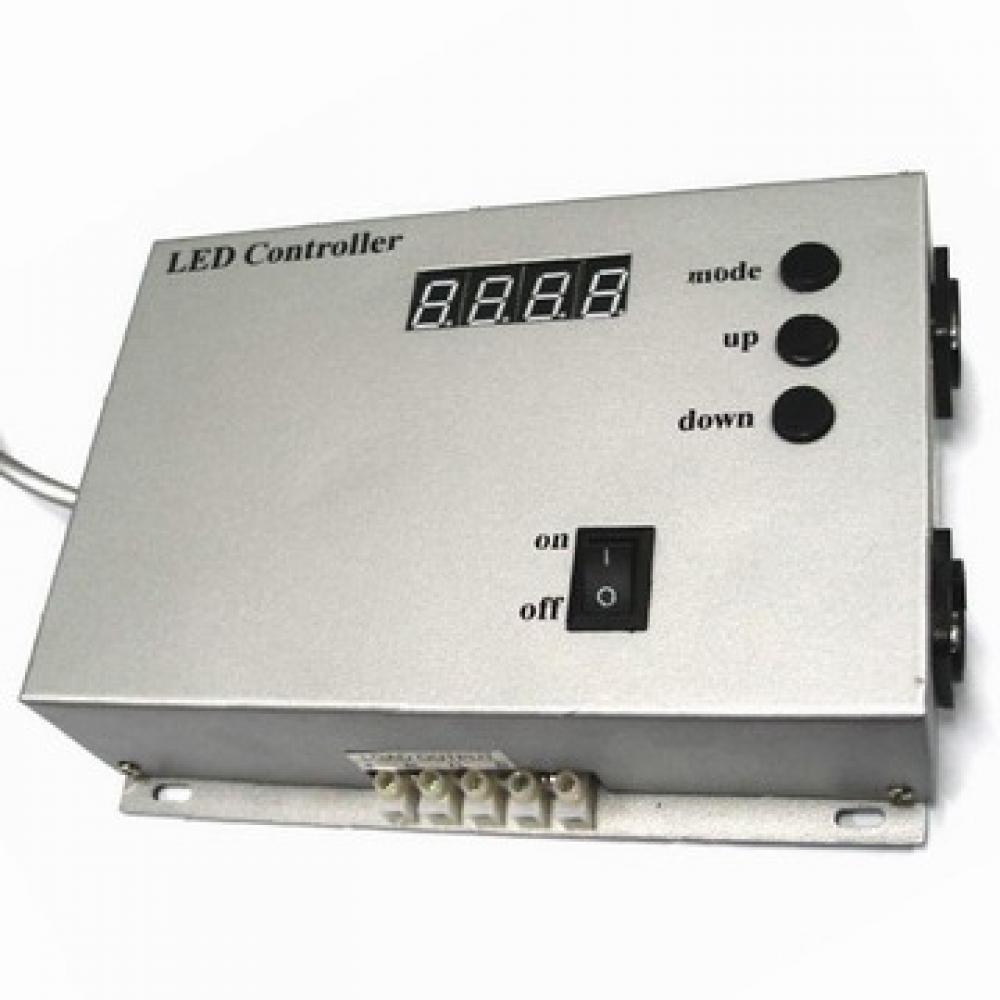

DMX Controller for RGB LED Lighting

Specification:
working temperature: -20-60℃
supply voltage: DC5V, 12V ,18V, 24V optional
output: 3 channels
connection mode: common anode
external dimension: L184ΧW123ΧH45 mm
packing size: L231ΧW182ΧH56 mm
net weight: 755g
gross weight: 820g
static power consumption: <1W
output current: <4A(each channel)
output power: 5V:<60W, 12V:<144W, 24V:<288W

Application
DMX controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose
source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall
light and so on; It has many advantages such as easy connection and simplicity to use. According to the actual
need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
