200mm Round Ball + 3 Arrow Signal

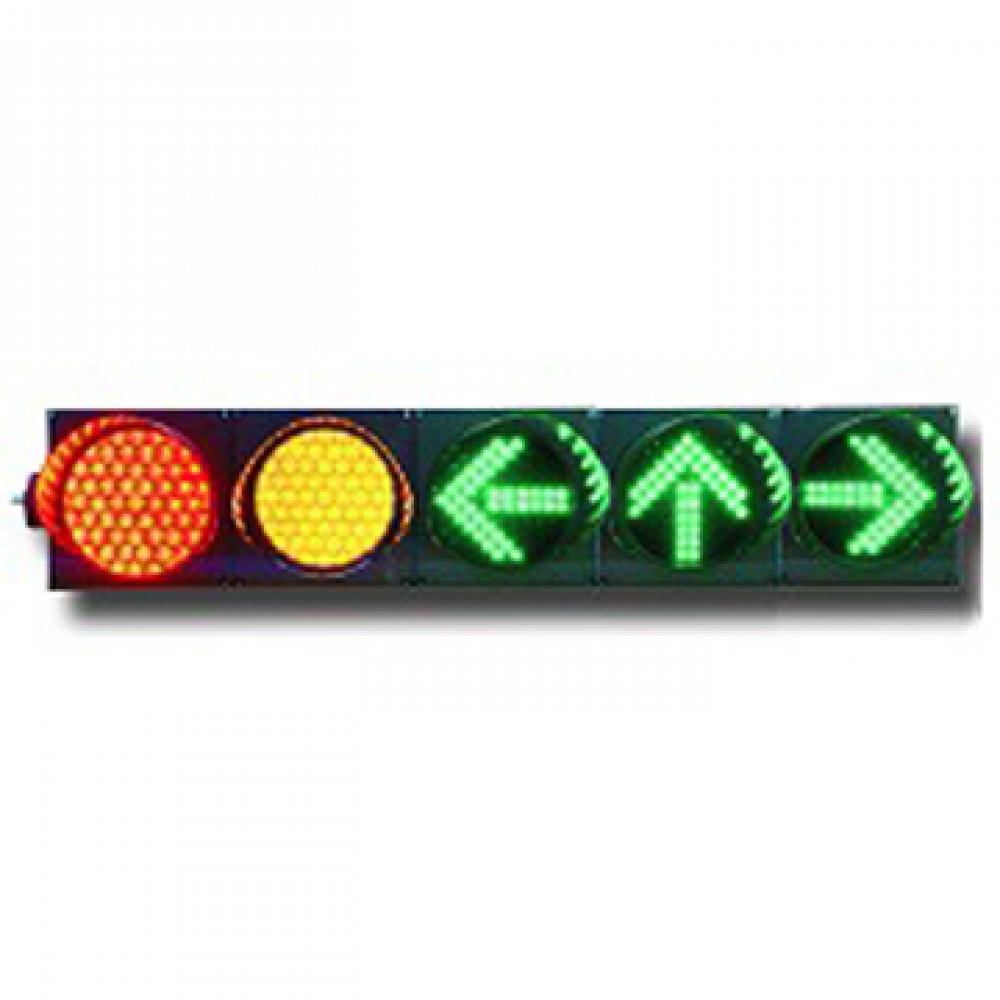

200mm / 8" Red and Yellow Round Ball and 3 Green Arrow Signal LED Traffic Light

Specifications:

Size: 1250mm x 250mm x 140mm
Input Voltage: 85V～264V AC 50Hz/60Hz
Operating Temperature: -40～+80℃
LED quantity:
Red ball: 61 pieces LEDs
Yellow ball: 61 pieces LEDs
Green Arrow(←): 38 pieces LEDs
Green Arrow(↑): 38 pieces LEDs
Green Arrow(→): 38 pieces LEDs
Beam Angle: 60°Right/Left;20°Alow
Wavelength:
Red: 625 ±5nm
Yellow: 590 ±5nm
Green: 505 ±2nm
Power consumption:
Red ball: ≤8W
Yellow ball: ≤8W
Green arrow(←): ≤7W
Green arrow(↑): ≤7W
Green arrow(→): ≤7W
IP rating: IP65
Package Dimension: 1440mm x 315mm x 210mm
Volume (m3): 0.97
Quatity: 1 PCS/Carton
Gross Weight: 15.4 Kg

Features:
Esthetic appearance & visibility
High efficiency and high brightness LED Light source, large view angle
More than 70,000 hours lifespan
90% energy saving compared with incandescent
Unique optical lens, superb color uniformity
Multi-ply sealed, water & dust resistant

Applications:
LED traffic light
LED traffic sign
LED traffic modular
LED traffic ball light
LED pedestrian modular
LED countdown timer
Solar traffic light
