300mm Countdown & Pedestrian Signal

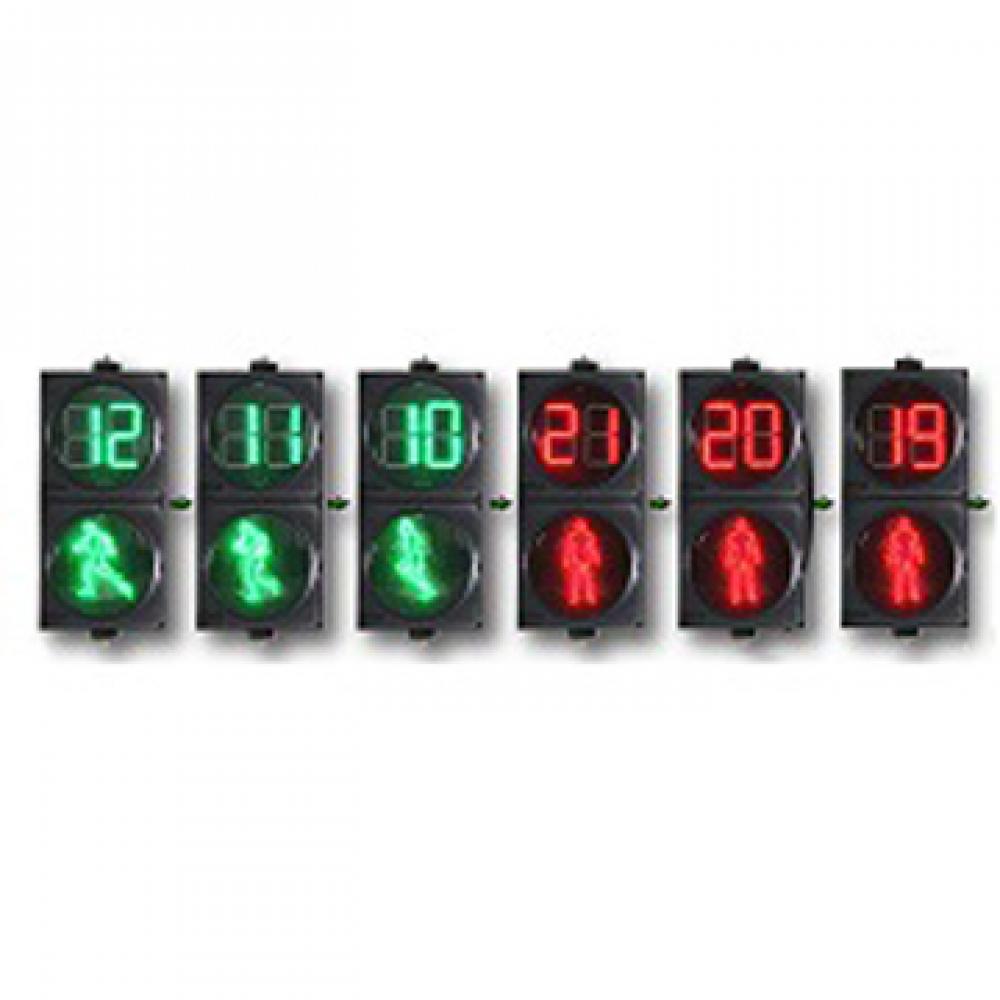

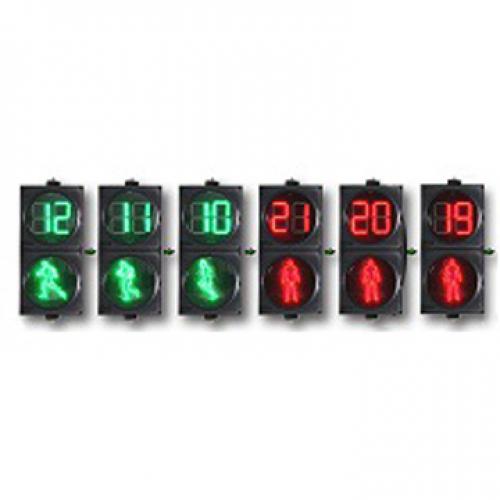

300mm / 12" Countdown Timer and Dynamic Pedestrian Signal LED Traffic Lights

Specifications:

Size: 700mm x 350mm x 110mm
Input Voltage: 85V～264V AC 50Hz/60Hz
Operating Temperature: -40～+80℃
LED quantity:
Red Timer: 84 pieces LEDs
Green Timer: 84 pieces LEDs
Red Waiting: 75 pieces LEDs
Green Walking: 314 pieces LEDs
Beam Angle: 30°Right/Left;10°Alow
Wavelength:
Red: 625 ±5nm
Green: 505 ±2nm
Power consumption:
Red Timer: ≤1W
Green Timer: ≤2W
Red Waiting: ≤5W
Green Walking: ≤10W
IP rating: IP65
Package Dimension: 900mm x 410mm x 230mm
Volume (m3): 0.085
Quatity: 1 PCS/Carton
Gross Weight: 9.2 Kg

Features:
Esthetic appearance & visibility
High efficiency and high brightness LED Light source, large view angle
More than 70,000 hours lifespan
90% energy saving compared with incandescent
Unique optical lens, superb color uniformity
Multi-ply sealed, water & dust resistant

Applications:
LED traffic light
LED traffic sign
LED traffic modular
LED traffic ball light
LED pedestrian modular
LED countdown timer
Solar traffic light
