Power Lead Connector 3528

8mm 3528 / 1210 SMD LED Strip Power Lead Connector

Specification:
Weight: 0.01g.
Length: 1.78cm
Width (inside): 0.8cm. (standard strip)
1.0cm (brighter strip)
Depth: 0.25cm
Working Voltage: 12V DC
IP Rating: non-waterproof

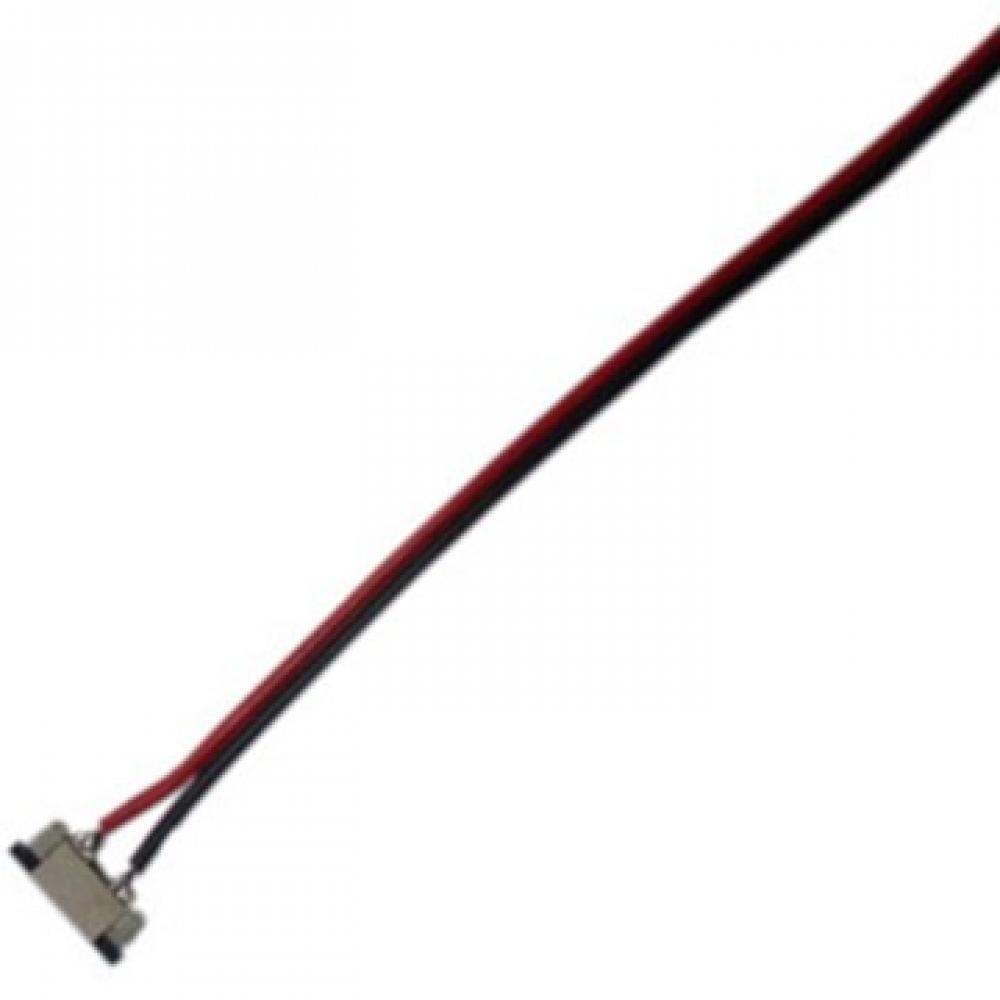

This input wire connector is used on the end of LED (single colour) 3528 strip lighting to allow it to connect with a 12V power supply. The 3528 strip light must be 8mm wide to use this connector. Before this connector can be used, the rubber waterproof coating must be removed up to 5mm from the end of the LED strip. This connector clips onto the end of the light strip where the gold coloured terminals are.
