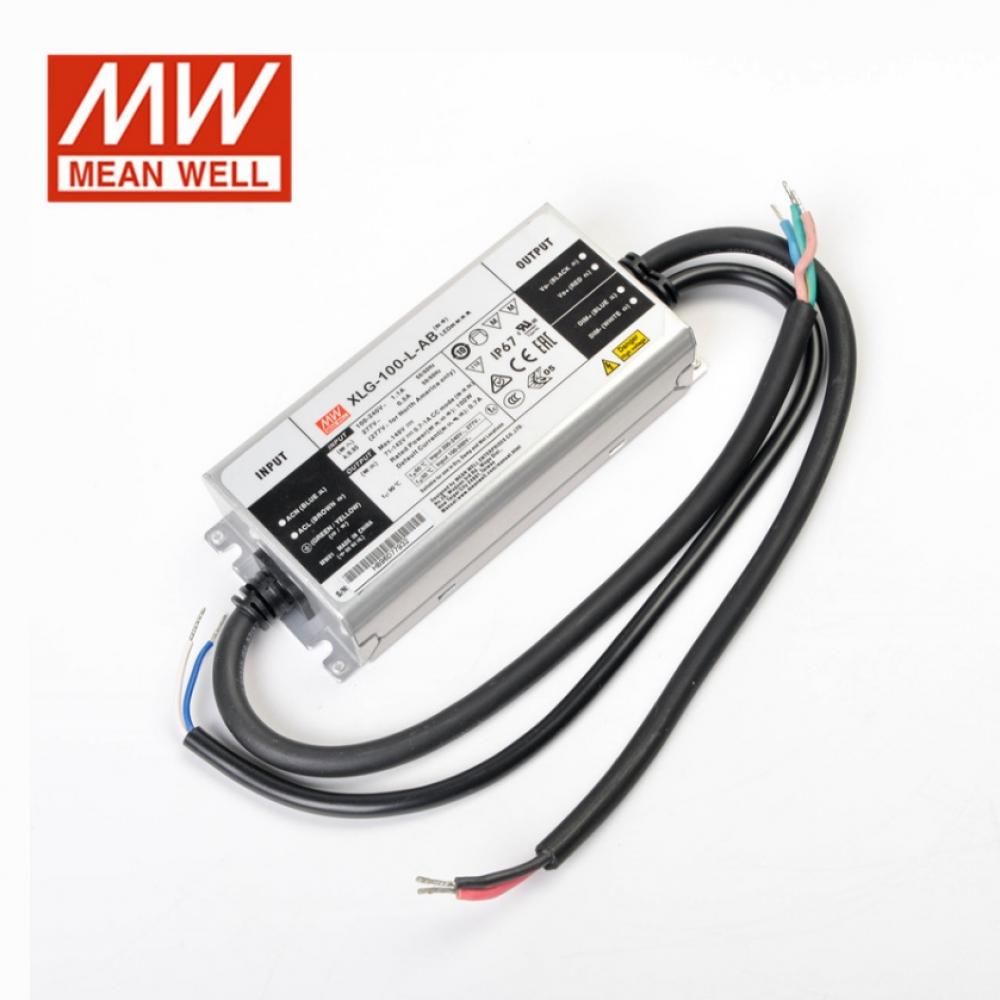

Mean well XLG-100-L-AB 100W LED Driver with Dimming Function

This 100W LED driver is designed for industrial applications, offering constant voltage and current output with a reliable three-in-one dimming function. Its IP67 waterproof rating and robust metal case ensure durability under challenging conditions.

Advantage

• High efficiency up to 92.5%
• IP67 waterproof for outdoor use
• Three-in-one dimming (0-10V, PWM, resistance)
• Overvoltage protection for safety
• Wide input voltage range (100-305VAC)

Parameter

• Input Voltage: 100-305VAC
• Output Frequency: 47-63Hz
• Working Temperature: -40 to +90°C
• Dimension: 140*63*32mm
• Warranty: 5 years

Application

• Industrial equipment
• Outdoor lighting systems
• LED signage and displays
• Architectural lighting
• Street lighting

Package

• Secure packaging to prevent damage
• Includes installation manual
• Compact and lightweight

Proffesional supplier of 100W LED Driver with Dimming Function from 2008. Each step — from product design and raw material selection to assembly, inspection, and packaging — is handled entirely in-house by our experienced team. The XLG-100-L-AB is part of our regular product lineup, manufactured under a mature process with consistent quality control at every stage.
