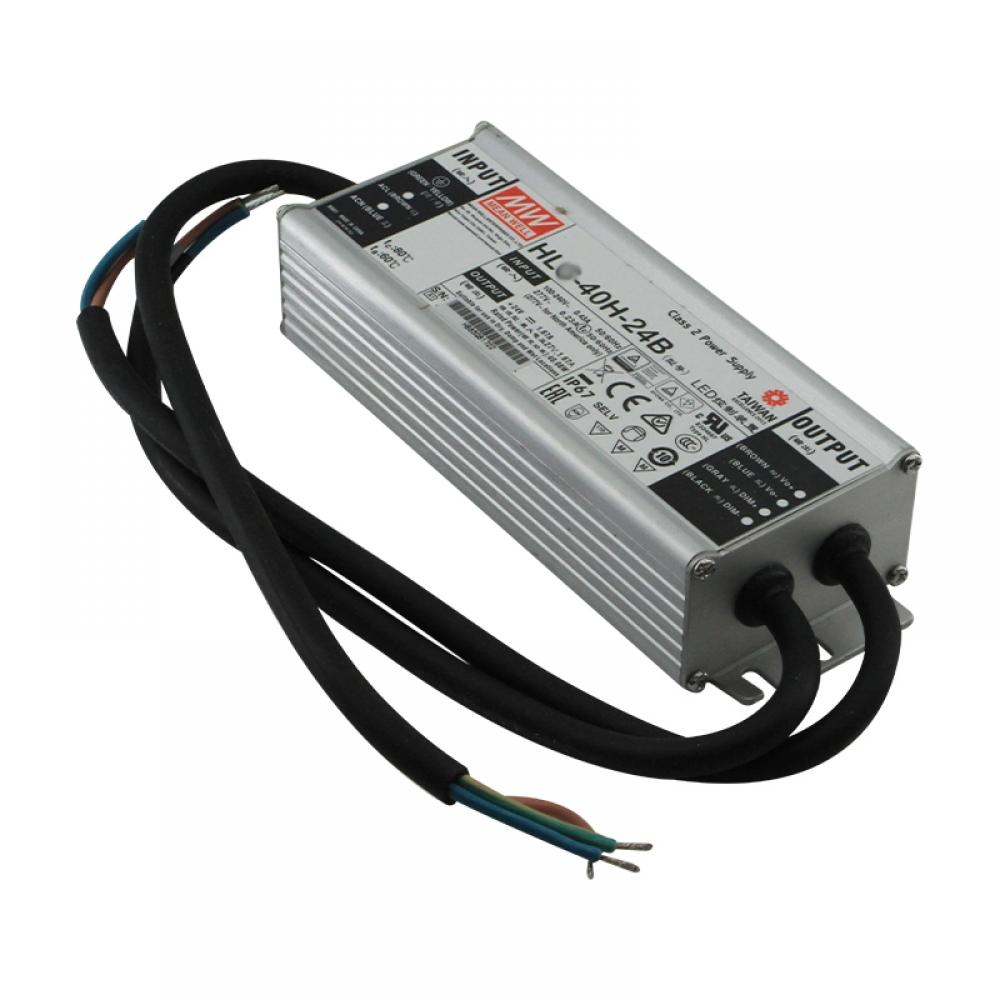

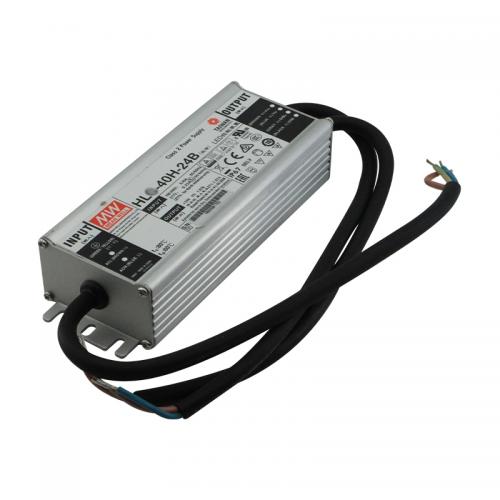

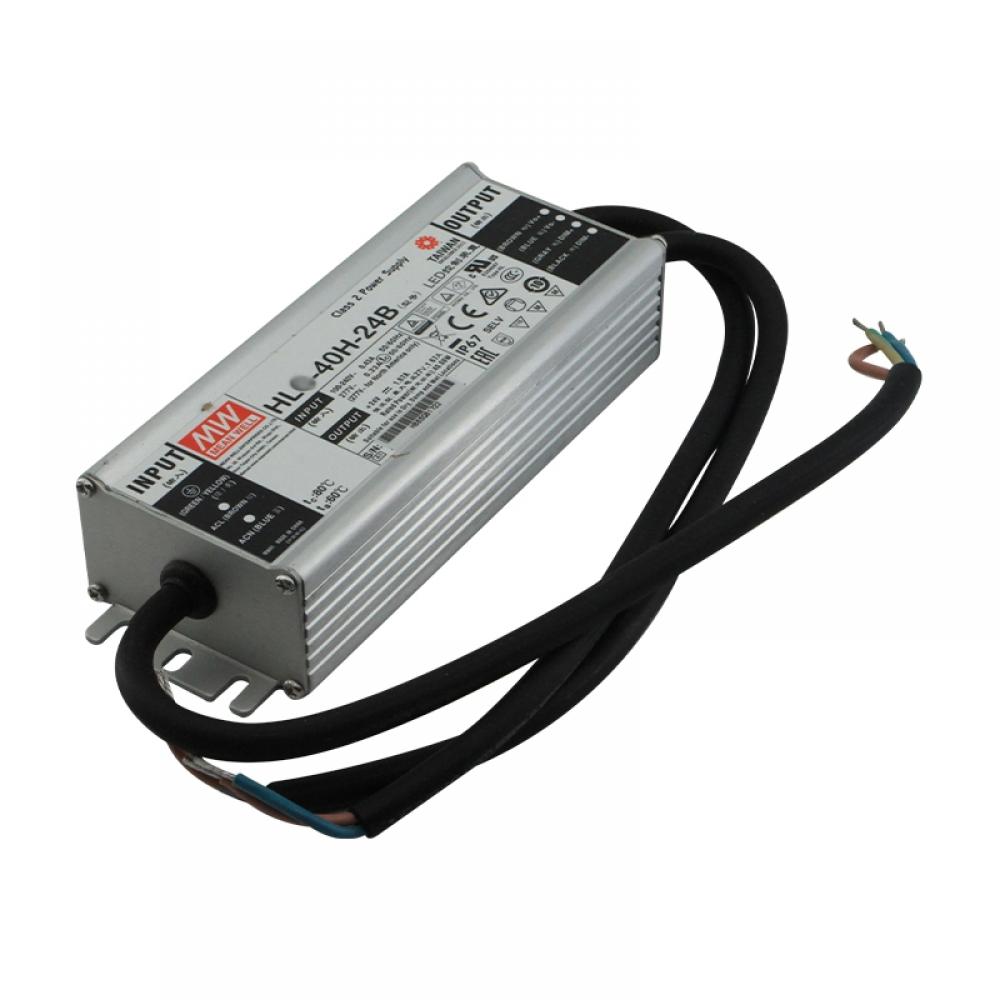

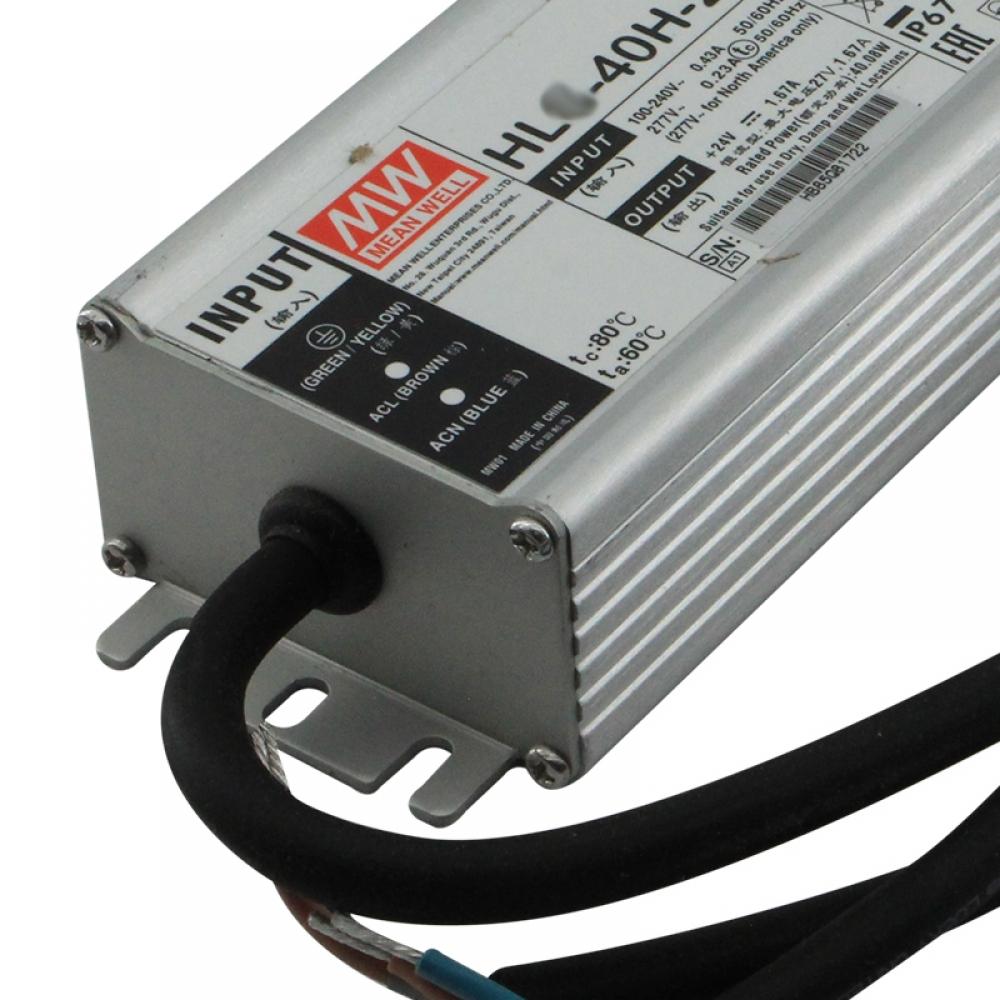

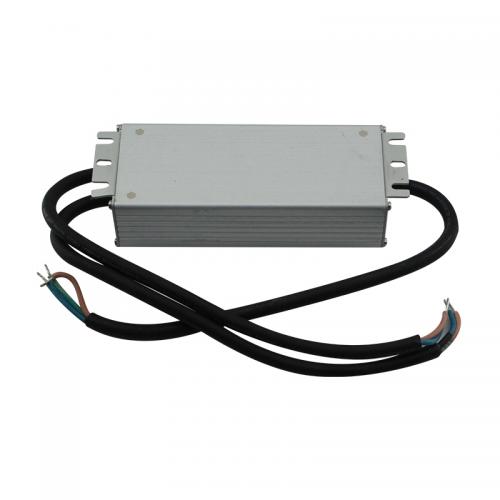

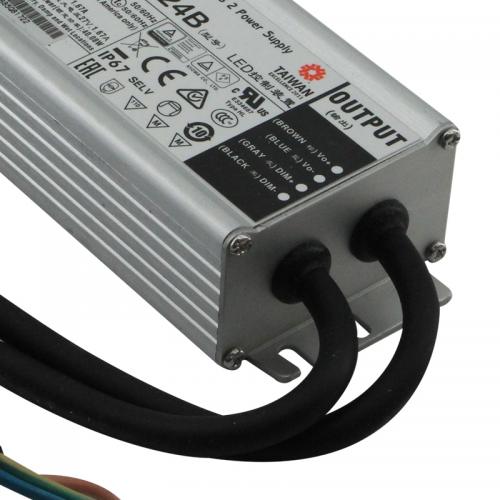

Mean Well HLG-40H-24B 40W LED Driver with Dimming Function

This 40W LED driver is designed for reliable and efficient power delivery, featuring a 24V constant voltage and current output with a 3-in-1 dimming function.

Feature

• 40W output power
• 24V constant voltage
• 3-in-1 dimming (PWM, 0-10V, resistance)
• IP65/IP67 waterproof rating
• High power factor (PF>0.98)
• Short circuit, overload, and overvoltage protection
• -40°C to +80°C wide working temperature
• Compact size for easy installation
• CE, CB, and CCC certified
• Energy-efficient design

Parameter

• Input Voltage: 90~305VAC
• Output Voltage: 24V
• Output Current: 1.67A
• Frequency: 50/60Hz
• Size: 171*61.5*36.8mm

Application

• Indoor and outdoor LED lighting
• Architectural lighting
• Signage and displays
• Residential and commercial applications

Package

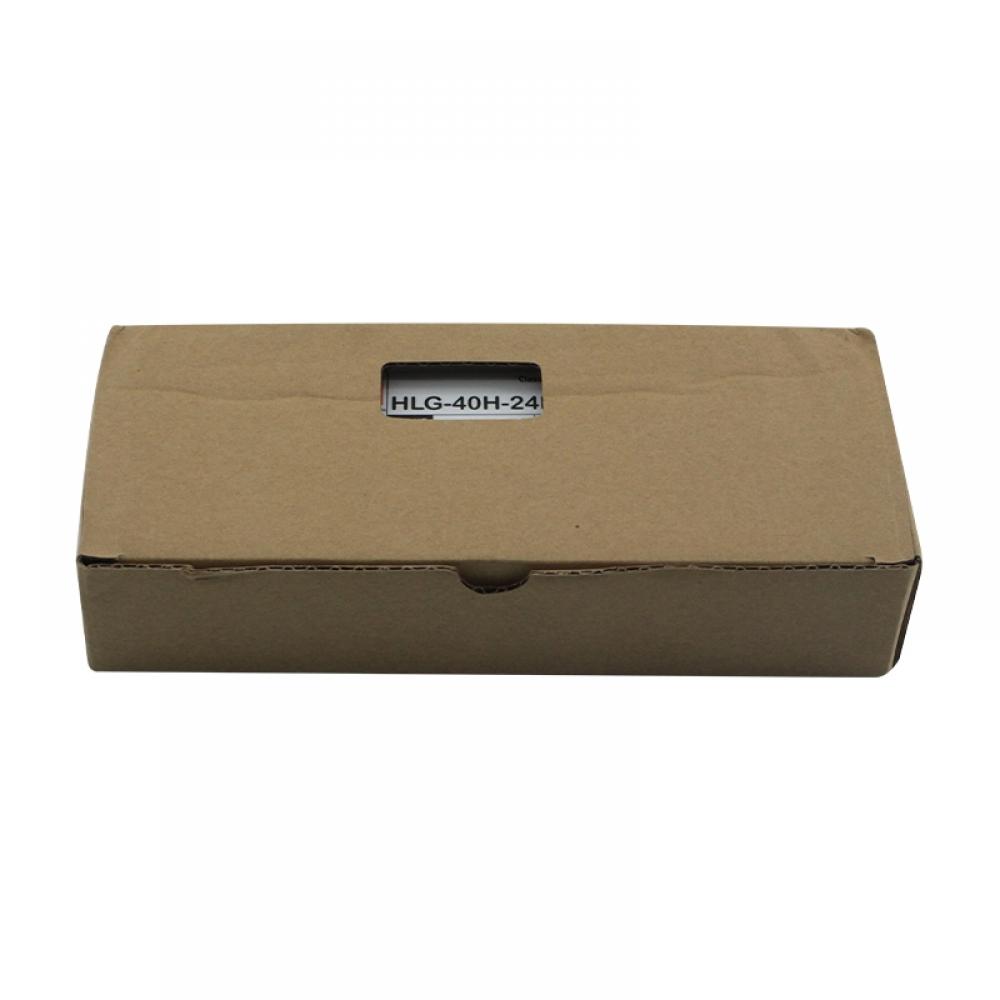

• LED driver unit
• Installation manual
• Protective packaging

Proffesional supplier of 40W LED Driver with Dimming Function from 2008. Each step — from product design and raw material selection to assembly, inspection, and packaging — is handled entirely in-house by our experienced team. The HLG-40H-24B is part of our regular product lineup, manufactured under a mature process with consistent quality control at every stage.
