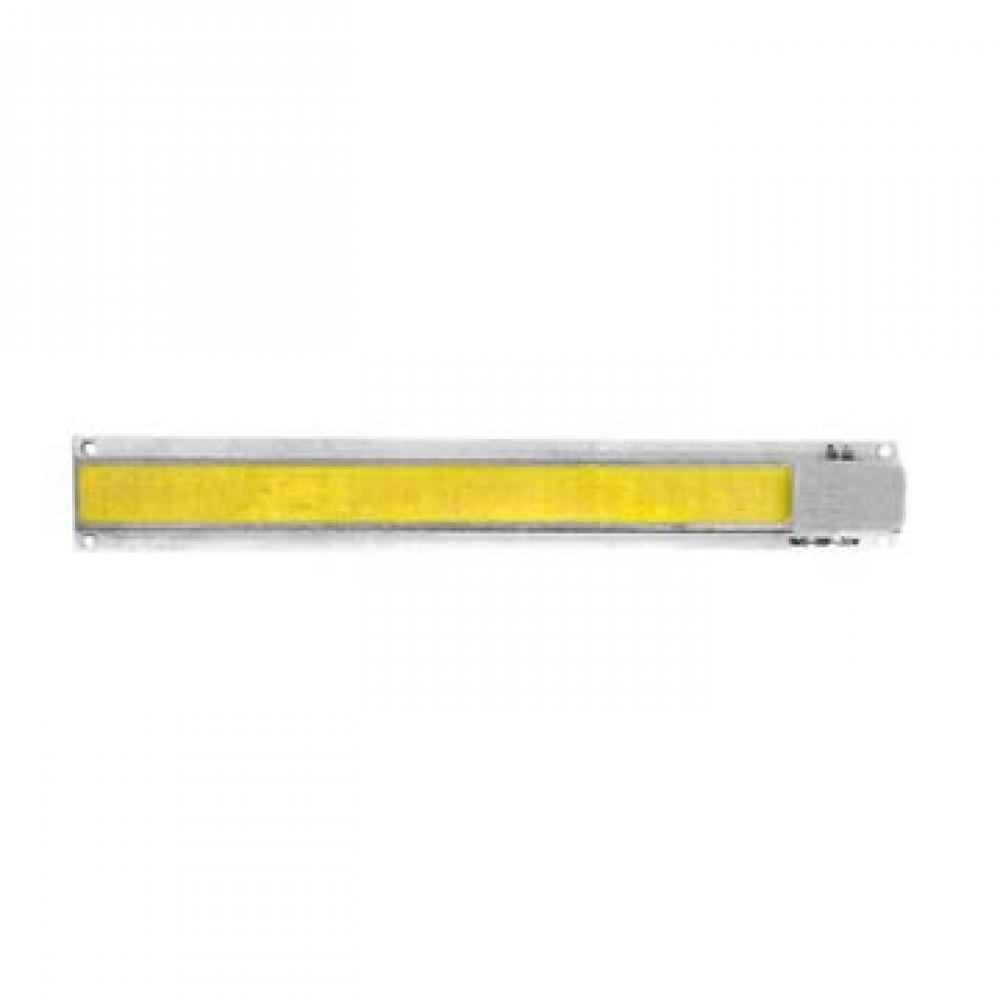

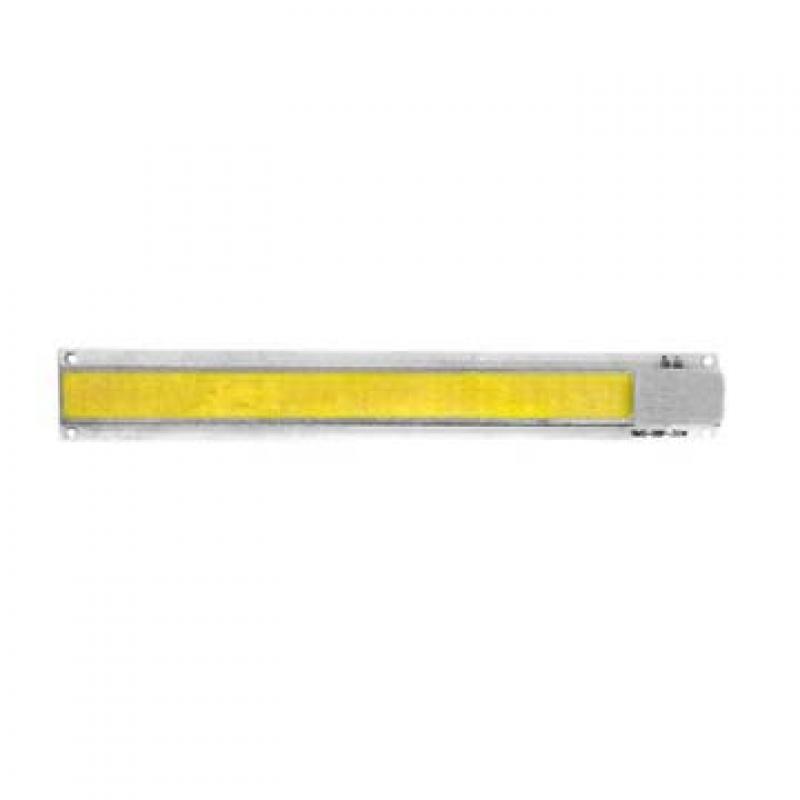

30Watt Power LED Emitter

30 Watt High Power LED Emitter

Feature:
High brightness
High durability
Excellent efficiency
Optimum performance
Rust proof
Long Life
Low power consumption
Various Viewing angle
Unbreakable

Specification:
LED type: 30 watt high power LED emitter
Constant Current: 1200mA
Forward voltage: 22-26 VDC
Power Consumption: 30W
Beam angle: 140°
Color: Pure White (3000K-3500K)
Natural White (4000K-4500K)
Warm White (6000K-6500K)
Green (520nm) / Blue (460nm)
Luminous flux: Green 1700 lm
Blue 700 lm
Pure White 2600 lm
Natural White 2500 lm
Warm White 2400lm
Electrical/Optical Characteristics at Ta=25℃
Height: 1.65mm
Length: 100mm
Width: 13.5mm
Operating temperature range: -10°C till +45°C
